U-PAD | Mixer and Interface | Compact Mixer with USB Interface

U-PAD | Mixer and Interface | Compact Mixer with USB Interface

SKU: 170.879

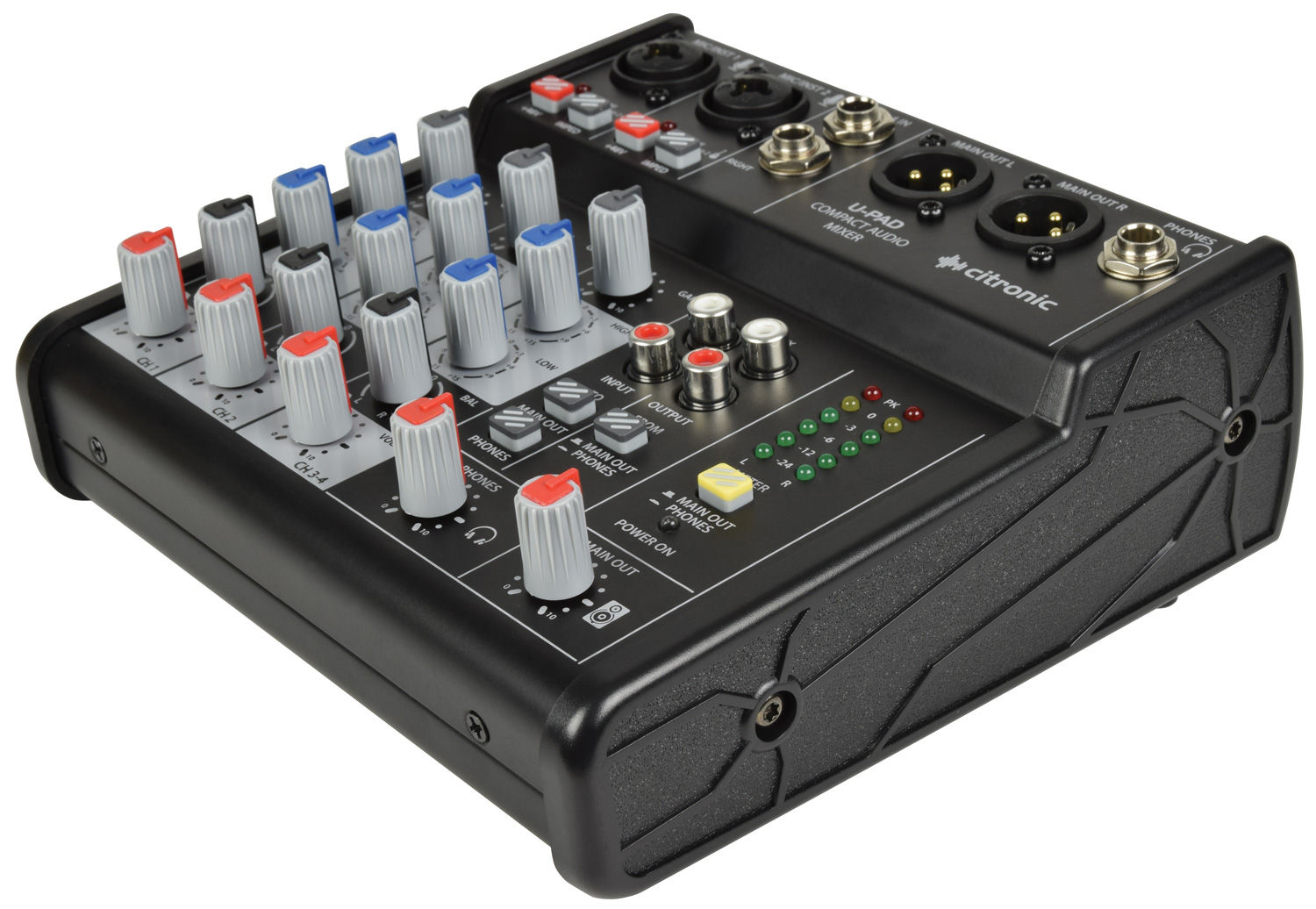

U-PAD Compact Mixer with USB Interface

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector.

High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring.

Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording.


When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.


  • High quality digital stereo input and output via USB
  • Studio quality balanced analogue inputs & outputs
  • Individually switchable +48V phantom power
  • Supplied with USB lead for power and PC/Mac connection
  • Power supply5.5Vdc (USB)
  • USB computer interfaceDuplex stereo in/out AD/DA
  • OutputLeft + Right balanced XLR (analogue)
  • Phantom power+48V individually switchable (XLR inputs only)
  • Gain-14 to +40dB
  • EQ: low±15dB @ 80Hz
  • EQ: high±15dB @ 12kHz
  • Input impedance : mic2k Ohms
  • Input impedance : instrument1M Ohms
  • Input impedance : line20k Ohms
  • Frequency response20Hz - 20kHz (±0.5B)
  • Sampling format24-bit, 96kHz max.
  • THD +N<0.03% @ 1kHz
  • Dynamic range102dB
  • Crosstalk : stereo92dB
  • Output impedance120 Ohms
  • Dimensions171 x 166 x 66mm
  • Weight900g
